Thickness Gauge
These measuring devices are used to determine the linear dimensions of rubber, elastomers, soft plastics, flexible foams, thin sheet materials and films.
The contact pressure exerted on the specimen by the thickness measurement device determines the accuracy of the measurement. Various standards specify the shape and area
of the sensor and support contact surfaces, together with the weight to be applied. ZwickRoell supplies ready-for-use sets consisting of contact elements and weights for rubber
testing and film testing.

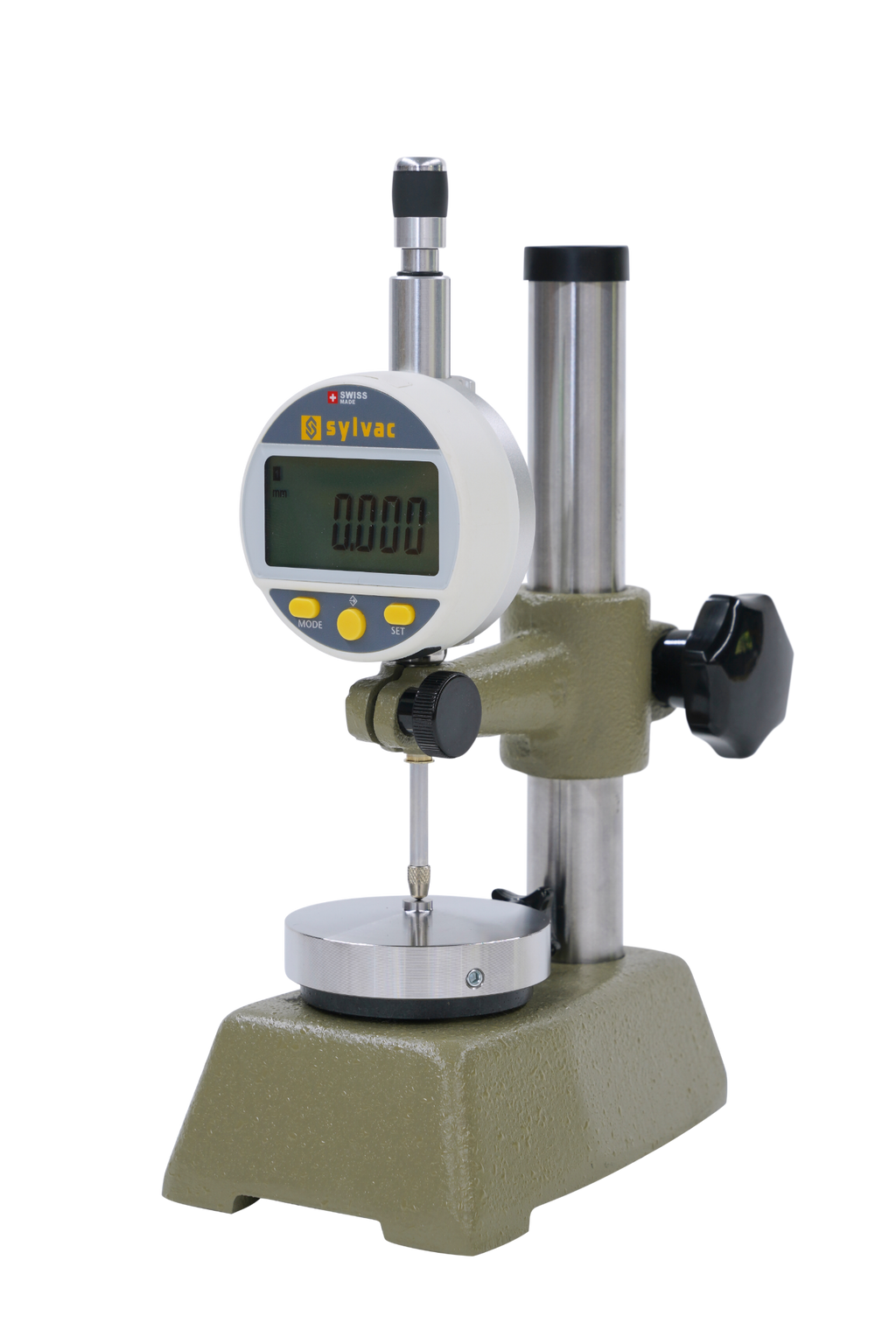

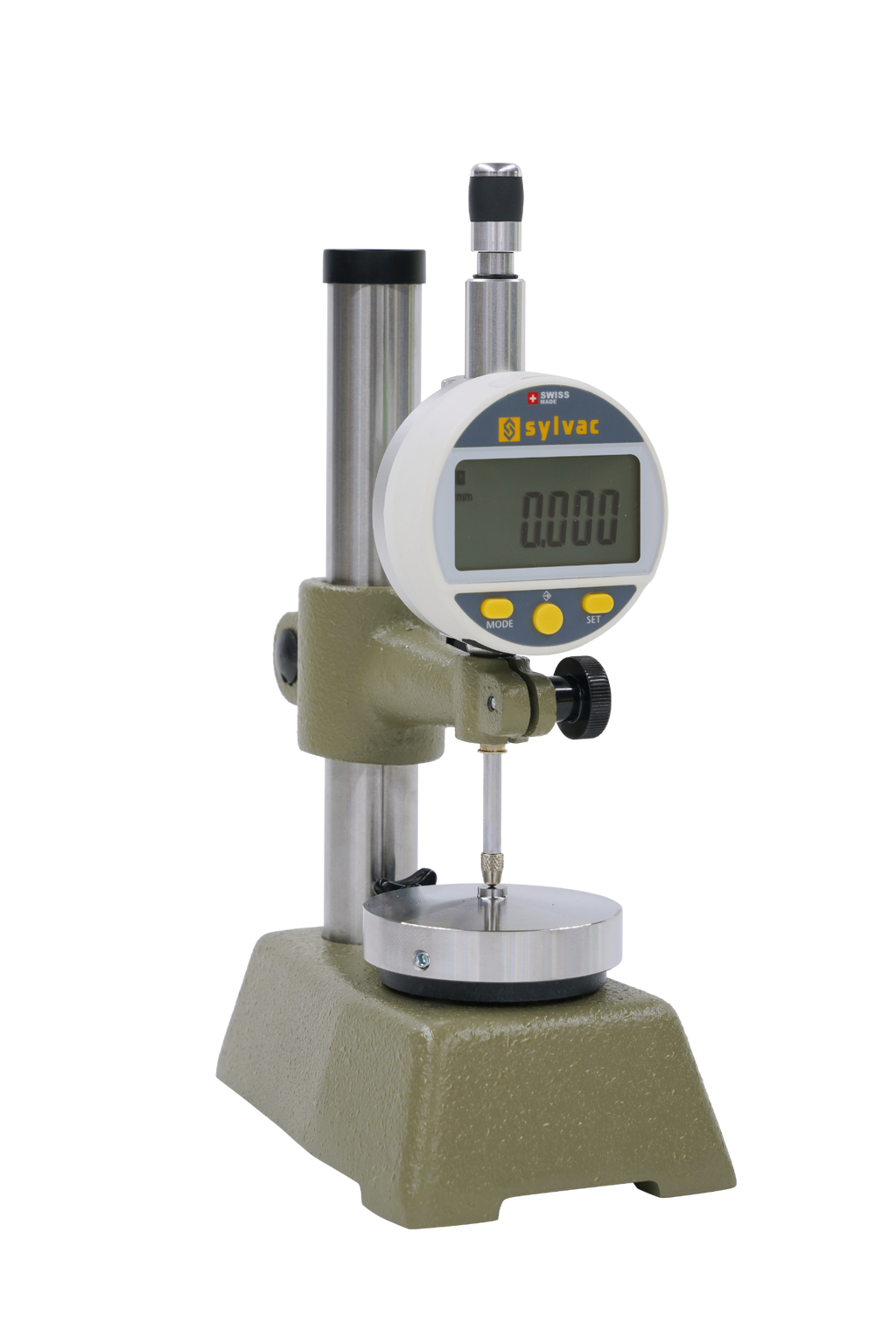

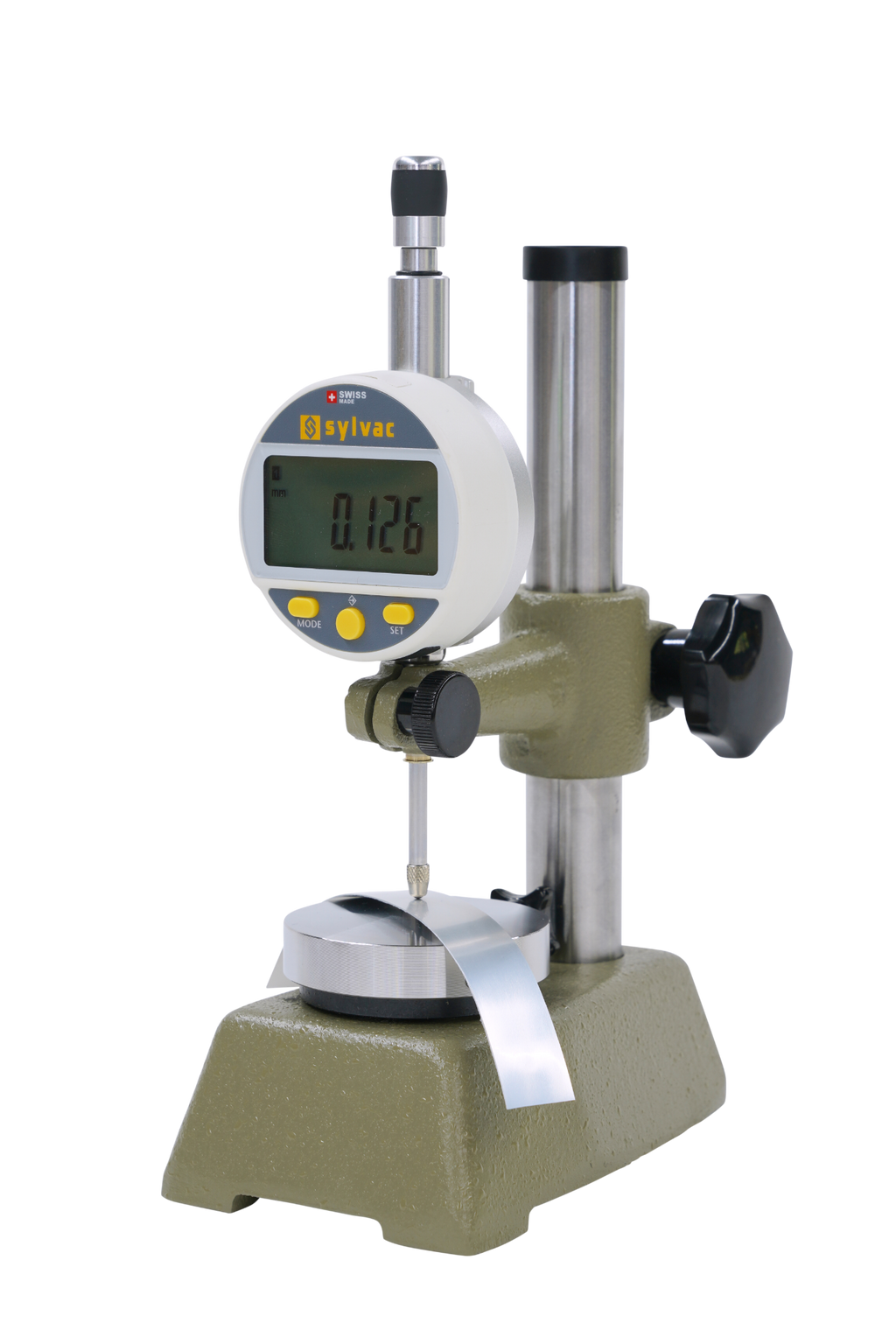

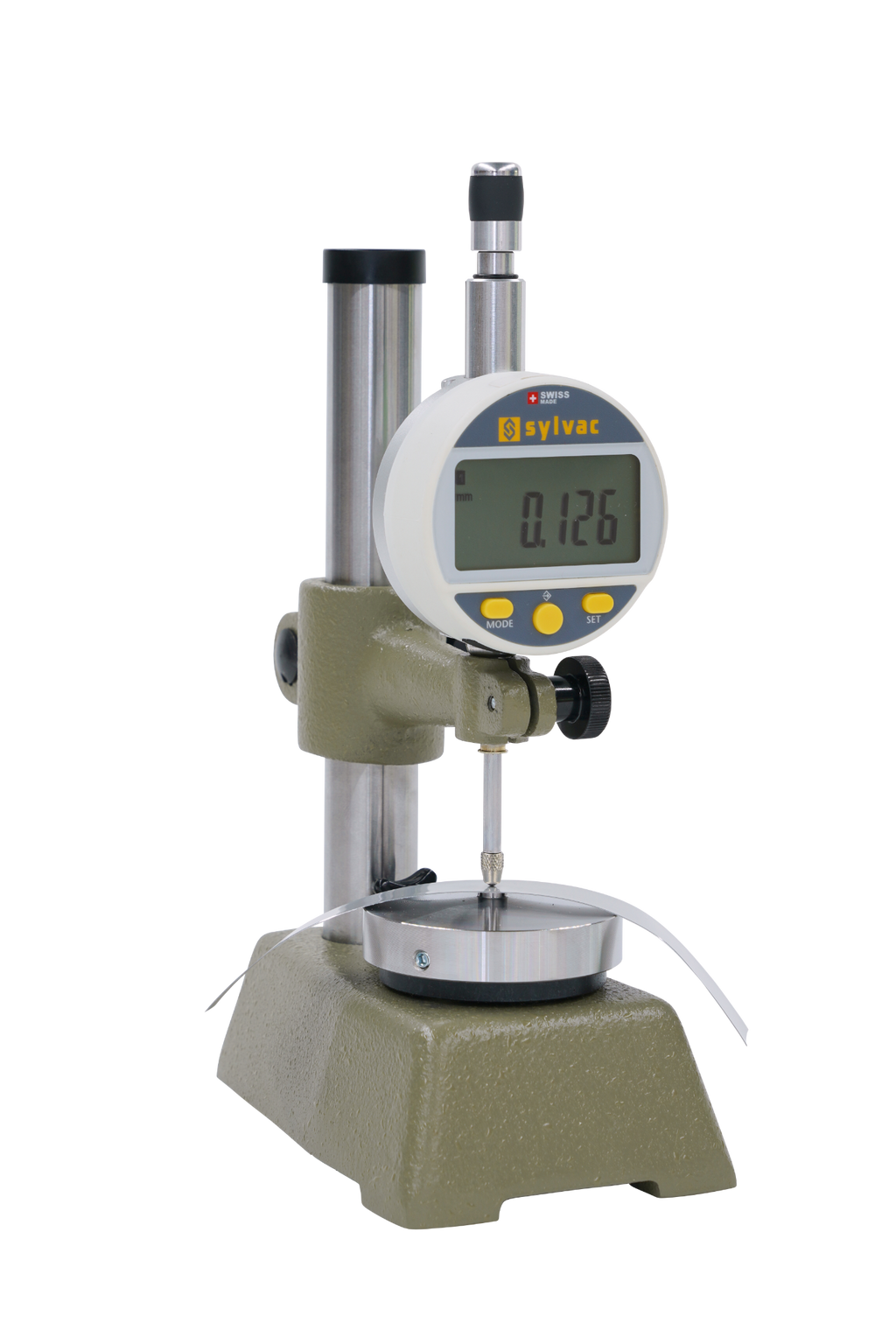

Dial gauge with 6-position LCD digital display and data output
- Measurement range 12 mm
- Resolution 0.001 mm
- Accuracy 0.005 mm
- With calibration certificate
- Scope of supply: Case, 1 set of batteries, signal cable 2 m for connection to PC and a measurement table dia. 50 mm, polished and lapped, throat 50 mm, height 100 mm
Set of transducer feet for plastics/films
- Ball joint and two weights for 20 kPa surface pressing with 6.35 mm foot diameter and 54 kPa with 4 mm foot diameter
